K-224

Front Wheel Bearing Cup Remover
All Models—All Years

K-318

Steering Knuckle Bushing Driver
1934-46 1 1/2 Ton Trucks

K-353

Gear Shift Lever Remover and Replacer
1934-46 1 1/2 Ton Trucks

An otherwise difficult job is made easy using this tool to remove or replace a gear shift lever. Slide the open side of the tool over the lever, engage the lugs of the tool in the open slot of the gear shift lever retainer. Press down firmly on the handles and turn to the left to disengage the retainer. Lift the lever out of the cover.

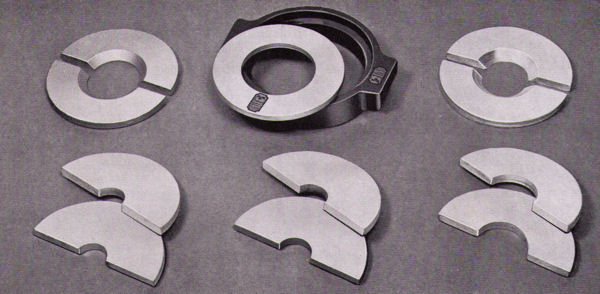

Press Plates and Holder Set
T20-22-R-3 Plate Holder

K-343 Speedometer Gear Replacer
1934-46 1 1/2 Ton Trucks

K-314 Pinion Coupling Remover Plate
All Passenger Cars

J-936 Clutch Gear Bearing Removing Plates
1937-46 All Except 1 1/2 Ton Trucks

K-315 U-Joint Bearing Remover Plate
1935-36 1 1/2 Ton Trucks

J-996 Pinion Outer Bearing Remover
1937-46 All Except 1 1/2 Ton Trucks

K-316 Pinion Coupling Remover Plate
1931-40 1 1/2 Ton Trucks

J-1453A Front Pinion Bearing Remover Plate
1939-46 1 1/2 Ton Trucks

K-342 Speedometer Gear Remover Plate
1936-46 1 1/2 Ton Trucks

K-370

Camshaft Gear Remover
1934-36 Passenger Cars and Trucks

This tool is designed for pressing the camshaft gear off the camshaft without damage. The tool provides complete support and prevents damage when the gear is removed. The tool is carefully machined to permit the camshaft to pass through, and allows the bronze thrust washer to rest on the smooth top edge of the tool. This prevents damage to both gear and thrust washer when the gear is pressed off. Use under an arbor press.

K-386

Countershaft Assembly Tool
1934-46 Passenger Cars—1/2-3/4 Ton Trucks
(Except Gears with Needle Bearings)

K-399

Pinion Bearing Remover
1934-39 1 1/2 Ton Trucks (7 Tooth Pinion)

K-410

Clutch Pilot Bearing Replacer
1934-46 Passenger Cars and Trucks

K-411

Clutch Pilot Tool
1935-46 All Master Passenger Cars and Trucks

K-427

Replacer Head
1933-36 Standard Models
1937-46 Passenger Cars

K-428

Propeller Shaft Bushing and Oil Seal Replacer
1934-36 Standard Models

At the outer end of the torque tube is a propeller shaft bushing. This tool is designed to replace the bushing to the correct depth in the tube without damage. The tool is made hollow to telescope over the end of the propeller shaft, and provides a safe way to replace the bushing and oil seal in the propeller shaft housing. (See also J-968, K-455, T-19-4 Propeller Shaft Bushing and Oil Seal Replacer).

K-445B

Clutch Pilot Bearing Retainer Puller
1933-34 Standard Passenger Cars
1939-46 All Passenger Cars and Trucks

K-436 Adapter for Standard Models

K-445-1 Pilot Arbor

K-445-2 Threaded Plug

K-445-3 Yoke

K-445-4 Washer

K-445-5 Nut

K-445-6 Pin—3/16" x 1 3/8"

K-445-7 Adapter for 1939 Models

K-455

Propeller Shaft Bushing and Oil Seal Replacer
1934-36 Passenger Cars

At the outer end of the torque tube is a propeller shaft bushing. This tool is designed to replace the bushing to the correct depth in the tube without damage. The tool is made hollow to telescope over the end of the propeller shaft, and provides a safe way to replace the bushing and oil seal in the propeller shaft housing. (See also K-428, J-968, T-19-4 Propeller Shaft Bushing and Oil Seal Replacer).

K-463A

Front Wheel Bearing Cup Inserter Set

J-875-2 Driver Handle

T-20-27-2 Front Wheel Outer Bearing Cup Inserter
1934-46 Trucks

T-20-27-13 Front Wheel Inner Bearing Cup Inserter
1934-46 Trucks

T-20-27-6 Front Wheel Inner Bearing Cup Inserter
1939-46 Passenger Cars

T-20-27-14 Front Wheel Outer Bearing Cup Inserter
1939-46 Passenger Cars

K-481

Clutch Pilot Tool
1935-36 Standard Passenger Cars
